Plugable Indutors (Pin Type Coils)

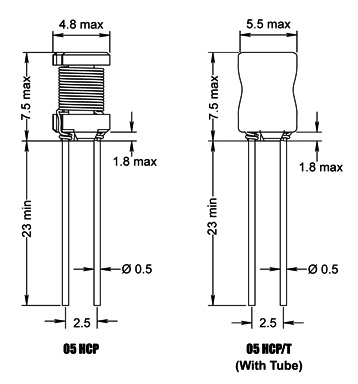

Technical Data & Specifications :

Complete Data Sheet :

S-parameter :

Print :

Part No	Inductance L (µH)	fL (kHz)	Tol ± (%)	SRF typ (MHz)	DCR max (Ω)	Rated DC Current (A)		Get Sample
Part No	Inductance L (µH)	fL (kHz)	Tol ± (%)	SRF typ (MHz)	DCR max (Ω)	\| max	\|sat typ	Get Sample
05HCP-6R8M-51	6.8	10 @ 0.1 V	20	35.00	0.070	1.685	1.850
05HCP/T-6R8M-51 (Tube)	6.8	10 @ 0.1 V	20	35.00	0.070	1.685	1.850
05HCP-100K-51	10	10 @ 0.1 V	10	23.00	0.090	1.485	1.600
05HCP/T-100K-51 (Tube)	10	10 @ 0.1 V	10	23.00	0.090	1.485	1.600
05HCP-180K-51	18	10 @ 0.1 V	10	14.00	0.120	1.320	1.200
05HCP/T-180K-51 (Tube)	18	10 @ 0.1 V	10	14.00	0.120	1.320	1.200
05HCP-220K-51	22	10 @ 0.1 V	10	12.00	0.140	1.100	1.100
05HCP/T-220K-51 (Tube)	22	10 @ 0.1 V	10	12.00	0.140	1.100	1.100
05HCP-330K-51	33	10 @ 0.1 V	10	10.00	0.172	1.070	0.870
05HCP/T-330K-51 (Tube)	33	10 @ 0.1 V	10	10.00	0.172	1.070	0.870
05HCP-470K-51	47	10 @ 0.1 V	10	8.00	0.218	0.960	0.740
05HCP/T-470K-51 (Tube)	47	10 @ 0.1 V	10	8.00	0.218	0.960	0.740
05HCP-820K-51	82	10 @ 0.1 V	10	6.00	0.370	0.720	0.550
05HCP/T-820K-51 (Tube)	82	10 @ 0.1 V	10	6.00	0.370	0.720	0.550
05HCP-101K-51	100	10 @ 0.1 V	10	5.00	0.500	0.600	0.500
05HCP/T-101K-51 (Tube)	100	10 @ 0.1 V	10	5.00	0.500	0.600	0.500
05HCP-151K-51	150	10 @ 0.1 V	10	4.30	0.635	0.560	0.400
05HCP/T-151K-51 (Tube)	150	10 @ 0.1 V	10	4.30	0.635	0.560	0.400
05HCP-221K-51	220	10 @ 0.1 V	10	3.50	0.965	0.450	0.320
05HCP/T-221K-51 (Tube)	220	10 @ 0.1 V	10	3.50	0.965	0.450	0.320
05HCP-331K-51	330	10 @ 0.1 V	10	2.35	1.946	0.320	0.300
05HCP/T-331K-51 (Tube)	330	10 @ 0.1 V	10	2.35	1.946	0.320	0.300
05HCP-471K-51	470	10 @ 0.1 V	10	2.35	1.946	0.320	0.220
05HCP/T-471K-51 (Tube)	470	10 @ 0.1 V	10	2.35	1.946	0.320	0.220
05HCP-821K-51	820	10 @ 0.1 V	10	1.76	3.750	0.240	0.170

Material

Ferrite

Packing Standard

Packing Form	Taped / Reel
radial	1000 [-51]
